FTTH Field Assembly Quick Connector LC APC Fiber Optic Fast Connectors
Description
FTTH Field Assembly Quick Connector LC APC Fiber Optic Fast Connectors manufactured by ANC International Co., Limited are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
ANC can produce and supply SC, LC, FC Field Assembly Connectors, suitable for 250um to 900um, 3.0mm diameter and 2mmx 3mm drop cable. These field assemly fiber connectors are avaiable in single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode types are available with PC or APC ferrules.
Features:
No epoxy and polishing required, No special tools needed when installed.
Allows up to three re-termination result.
Easily installed, Quick and easy fiber termination in the field.
Precision mechanical alignment insures low insertion loss
Superior optical performance
Uses proven, molded v-groove technologies
Applications:
Fiber optic data transmission
CATV
Optical access network
Fiber to the Subscriber (FTTx) applications
Optical cable interconnection
Maintenance or emergency restoration of fiber networks
Specifications:
| ITEM | Technical Parameters |
| Applicable for | Drop cable. Indoor cable |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | ≤ -50dB(APC); ≤ -40dB(PC); |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40～+75℃ |
| On-line tensile strength (20 N) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
| Mechanical durability (500 times) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
| Drop-off test (drop-off height 4m, once per direction, totally 3 times) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
Product Tags:
|
|

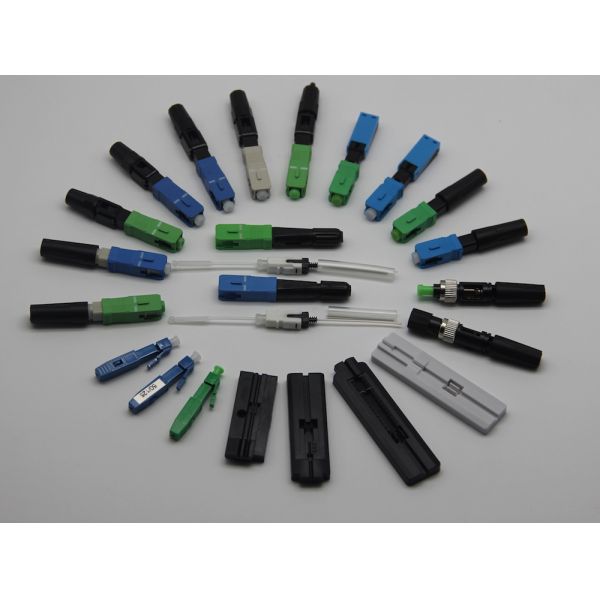

FTTH Field Assembly Quick Connector LC APC Fiber Optic Fast Connectors Images
|
